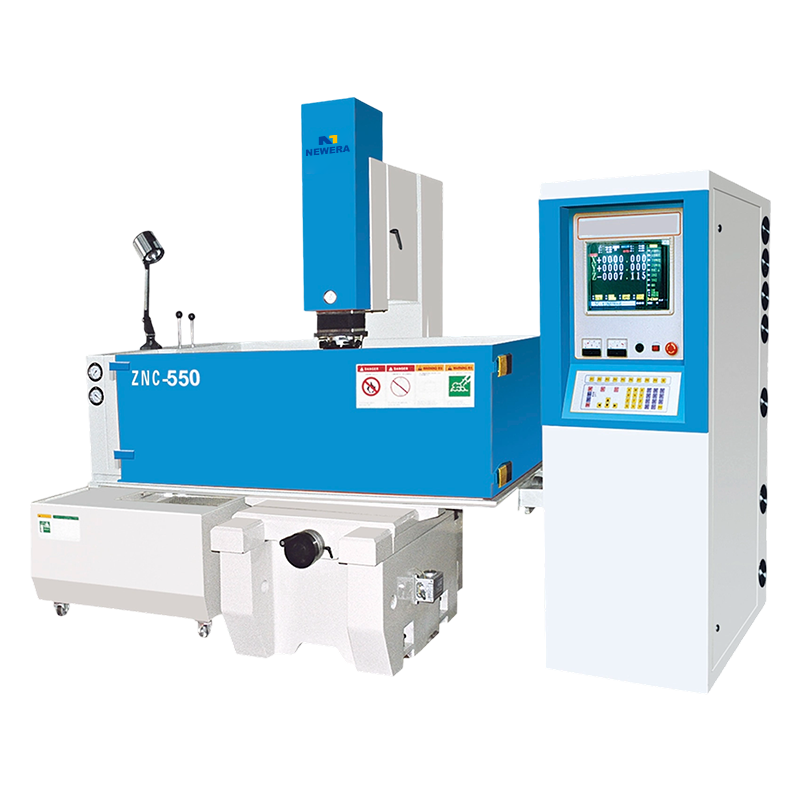

Name: ZNC 550 EDM Die Sinking Machine/Sinker EDM
Rating: 5 (99 reviews)

ZNC 550 EDM Die Sinking Machine/Sinker EDM

Optional: EDM Control Cabinet

CNC Wire Cut EDM Machine: Specs, Costs and Buying Guide for Mold Shops -2026 -10-21
A hardened D2 stamping die, a carbide punch, an extrusion die insert — once these parts come out of the furnace at 58 to 62 HRC, milling is over and grinding becomes slow and expensive. A CNC wire cu...
EDM technology: Applications, Selection Criteria, and Practical Guidance -2026 -10-20
Picture a hardened H13 mold insert with a 0.8 mm deep rib and a square internal corner that no end mill can reach. The cavity has already been milled, but the last details need a process that cuts wi...
EDM Discharge Machining Explained: Process, Tooling and Machine Selection -2026 -10-14
A 0.6 mm inside corner in a hardened H13 mold insert forces a small end mill into 52 HRC steel, and that is a tool-breaking job most shops would rather decline. EDM discharge machining sidesteps the ...
What Does EDM Stand For in Machining? Electrical Discharge Machining Explained -2026 -10-07
Harden a mold insert to 52 HRC and the milling cutter that shaped it in the soft state stops being an option. The corner radius is 0.3 mm, the rib is 40 mm deep, and the tool simply cannot reach into...

Model	Unit	ZNC 550
Working table	Mm	1000*500
Inside oil groove size	Mm	1410810540
Outside oil groove size	Mm	1680880550
Max. height of oil level	Mm	450
X travel	Mm	550
Y travel	Mm	450
Spindle travel	Mm	250
2nd stage travel	Mm	220
Distance from spindle to working table	Mm	580
Maximum working current	A	75
Max. processing speed	mm3/min	300-400
Min. electrode consumption		1/1000
Best roughness	Ra	0.8UM
Max. electrode weight	Kgs	80
Max. load on working table	Kgs	1000
Machine weight	Kgs	1700
Dimension (Without fuel tank and electrical box)	Mm	190016002300
