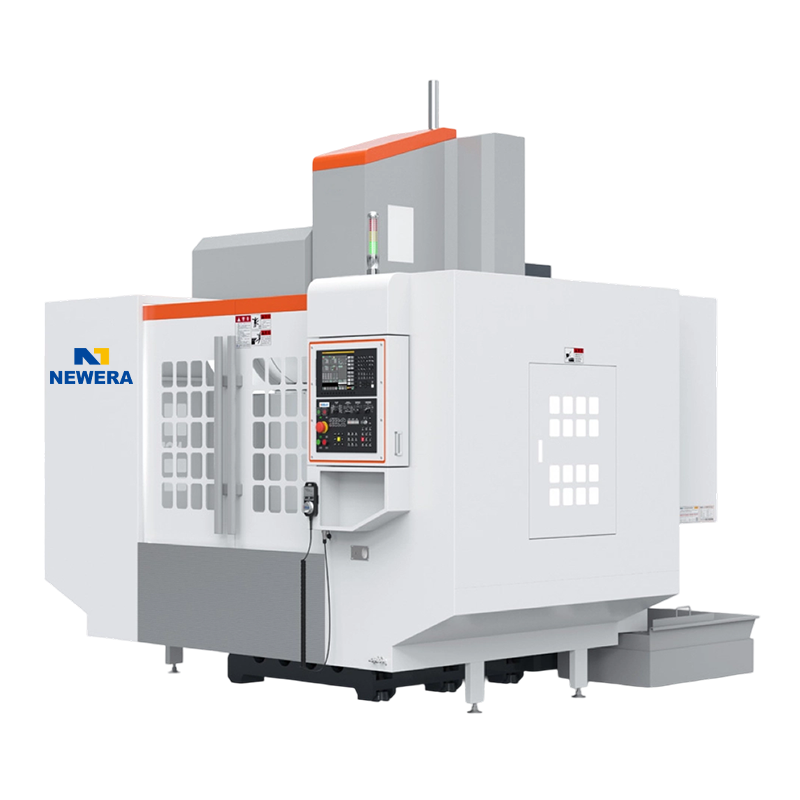

Universal Z-Axis Box Way Vertical Machining Center Manufacturers

A universal Z-axis box-way vertical machining center is a high-precision CNC machine tool employing a box-type guideway structure. It is widely used in industries such as machining, mold making, aerospace, and automotive. Its design emphasizes rigidity, stability, and efficiency, exhibiting stable performance, especially when machining large, high-precision, and complex-shaped parts.

1. What is a Universal Z-Axis Box Way Vertical Machining Center?
A universal Z-axis box-way vertical machining center is a vertical CNC machine tool using a box-type guideway design. Unlike traditional sliding guideways, the box-type guideway provides higher rigidity and stability through its box-shaped structure on both sides, capable of withstanding greater loads and higher cutting forces, thereby improving machining accuracy and efficiency. The box-type guideway design on the Z-axis gives the machining center stronger rigidity in the vertical direction, enabling it to accurately complete various machining tasks such as milling, drilling, and tapping.

As a professional OEM Universal Z-Axis Box Way Vertical Machining Center Manufacturer and ODM Universal Z-Axis Box Way Vertical Machining Center Factory, New Era has continuously achieved advanced scientific and technological achievements both domestically and internationally, and has now developed into a professional manufacturer with a complete production and mounting center.

2. Features of Universal Z-Axis Box Way Vertical Machining Center
(1) Excellent Rigidity and Stability
The most prominent feature of the universal Z-Axis box way vertical machining center is its rigidity and stability. The box-type guideway design makes the entire machine tool structure more robust, capable of withstanding larger cutting forces and workloads, ensuring the stability of accuracy during machining. This design is particularly suitable for machining tasks requiring high rigidity support, such as machining large-size workpieces or milling operations with high cutting forces.

(2) High-Precision Machining Capability
Due to the higher support rigidity provided by the box-type guideway design, the universal Z-Axis box way vertical machining center can maintain high machining accuracy under high cutting conditions. By adopting a high-precision CNC system and a precision transmission device, the machine tool can achieve micron-level machining accuracy, meeting the needs of precision parts machining. (3) Excellent Load Capacity
Another important advantage of the universal Z-axis box-type guideway is its excellent load capacity. Due to the wide distribution of the box-type guideway structure, it can evenly distribute the load generated during machining, preventing machine tool deformation due to overload, thereby improving the machine tool's durability and service life.

(4) High-Efficiency Cutting Performance
This type of machining center typically has high spindle speeds and feed rates, enabling it to complete efficient cutting tasks in a short time, making it particularly suitable for mass production and high-efficiency machining requirements. The machine tool's power and transmission systems are carefully designed to maintain continuous stability in cutting capabilities under high loads.

(5) Precise Z-Axis Motion Control
The Z-axis is one of the most critical axes in a vertical machining center, directly determining machining accuracy. The Z-axis design of the universal Z-axis box-type guideway vertical machining center adopts a box-type guideway structure, which effectively reduces vertical vibration and thermal deformation, thereby ensuring the stability and accuracy of the Z-axis during high-speed cutting.

3. Application Areas of General-Purpose Z-Axis Box-Type Vertical Machining Centers
(1) Mold Manufacturing
In the mold manufacturing industry, precision and high-load machining requirements are extremely high. General-purpose Z-axis box-type vertical machining centers, with their excellent rigidity and precision, are widely used in milling and finishing of molds.

(2) Aerospace
The aerospace industry has extremely high quality requirements for parts. General-purpose Z-axis box-type vertical machining centers can efficiently and stably process complex aerospace parts, such as engine blades and aerospace structural components.

(3) Automotive Industry
In automotive parts manufacturing, especially the machining of large-sized parts such as engine housings and body components, general-purpose Z-axis box-type vertical machining centers, with their strong rigidity and high load capacity, have become key production tools.

(4) Precision Machining
For the machining of precision mechanical parts, general-purpose Z-axis box-type vertical machining centers provide a stable machining environment, ensuring high precision and high surface quality of the parts.

4. Common Fault Table of Z-Axis Box Way Vertical Machining Center
