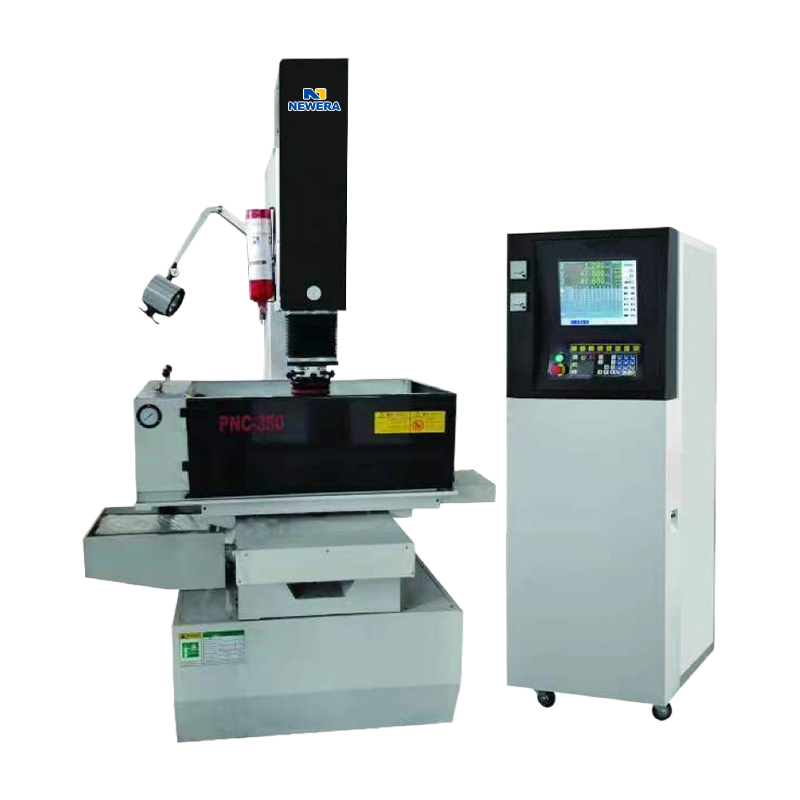

Name: PNC 350 EDM Die Sinking Machine/Sinker EDM
Rating: 5 (99 reviews)

PNC 350 EDM Die Sinking Machine/Sinker EDM

Optional: PNC Tungsten Steel Electric Box (DC)

EDM Discharge Machining Explained: Process, Tooling and Machine Selection -2026 -10-14
A 0.6 mm inside corner in a hardened H13 mold insert forces a small end mill into 52 HRC steel, and that is a tool-breaking job most shops would rather decline. EDM discharge machining sidesteps the ...
What Does EDM Stand For in Machining? Electrical Discharge Machining Explained -2026 -10-07
Harden a mold insert to 52 HRC and the milling cutter that shaped it in the soft state stops being an option. The corner radius is 0.3 mm, the rib is 40 mm deep, and the tool simply cannot reach into...
A Guide to CNC Machining for Aerospace: Tolerances, EDM and Machine Tool Choices -2026 -09-30
A job shop is quoting a titanium bracket: Ti-6Al-4V, 240 mm long, two bearing bores held to ±0.010 mm, a 0.8 mm-wide seal groove that must finish at Ra 0.4 µm, and a first article inspection report d...
CNC Machining Centers Explained: Types, Key Specifications, and How to Choose -2026 -09-23
A machining contractor once brought us a quotation for 2,000 pump housings with a simple requirement: a ±0.008 mm bore tolerance, documented on every part. The shop's manual mills could hit that numb...

Model	Unit	PNC 350
Working table	Mm	600*350
Inside oil groove size	Mm	870480340
Outside oil groove size	Mm	1100600350
Max. height of oil level	Mm	280
X travel	Mm	350
Y travel	Mm	250
Spindle travel	Mm	200
2nd stage travel	Mm	200
Distance from spindle to working table	Mm	500
Maximum working current	A	75
Max. processing speed	mm3/min	300-400
Min. electrode consumption		1/1000
Best roughness	Ra	0.8UM
Max. electrode weight	Kgs	30
Max. load on working table	Kgs	500
Machine weight	Kgs	1000
Dimension (Without fuel tank and electrical box)	Mm	150014002300
