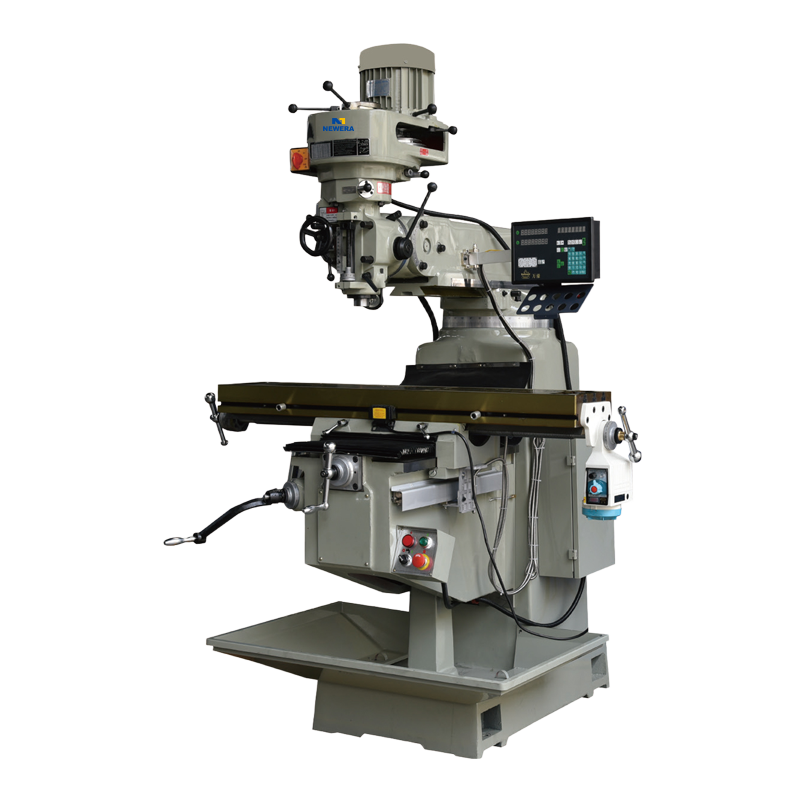

3M/4M/5M/6M Turret type milling machine Manufacturers, Company

How Has the ZNC EDM Die Sinking Machine Improved Efficiency by 30% in 2026? -2026 -04-16

The answer is direct: in 2026, the ZNC EDM Die Sinking Machine achieves a 30% efficiency improvement primarily through the integration of adaptive servo control systems, automated electrode managemen...

What Are the Advantages of CNC EDM Die Sinking Machines? -2026 -04-09

The CNC EDM Die Sinking Machine delivers what conventional cutting tools cannot: the ability to machine hardened metals, complex cavities, and micro-features with repeatable sub-micron precision. For...

How to Maintain and Extend the Life of an EDM Machine? -2026 -04-02

To maintain and extend the life of an EDM machine, perform daily dielectric fluid checks, clean the work tank weekly, inspect electrodes before every operation, and schedule a full mechanical inspect...

How to Maintain a ZNC EDM Die Sinking Machine for Long-Term Use? -2026 -03-26

Maintaining a ZNC EDM die sinking machine for long-term use requires a disciplined combination of daily cleaning, dielectric fluid management, mechanical alignment checks, electrical system inspectio...

Model	Unit	3M	4M	5M	6M
Spindle Taper		NST#30 or R8		NST#40	NST#40
Rotate Speed Of Spindle	rpm	16: 66-4540(50Hz)		16: 66-5440	10: 80-2850(50Hz)
Spindle head left and right rotation angle		90		90	90
Spindle Quill travel	mm	127		132	132
Stroke Of telescopic boom	mm	360		500	550
Distance between the Spindle nose and the worktable	mm	0-428		0-530	0-580
Distance from the spindle center and to the vertical guid way	mm	45		45
Distance from spindle center to vertical guideway		190-685		170-720	172-720
Speed of the spindle auto feed (per circle)	mm	0.4/0.08/0.15		0.4/0.08/0.15	0.4/0.08/0.15
Table Size	mm	254×1270		254×1370	305×1370
Longitudinal travel	mm	800(740 with auto feeding)		900	785
Cross Travel	mm	380		408	405
Vertical Travle	mm	370		390	500
T slot (width×number×interval)	mm	3×16×65		3×16×75	3×16×75
Spindle Motor	HP	3		5(1/2)	5(1/2)
Lubricate System		Manual oil filling		Manual lubrication	Manual lubrication
Net weight	kgs	1200	1300	1500	1800
Overall size	mm	1700×1730×2200		1800×1830×2350	1800×1900×2400
