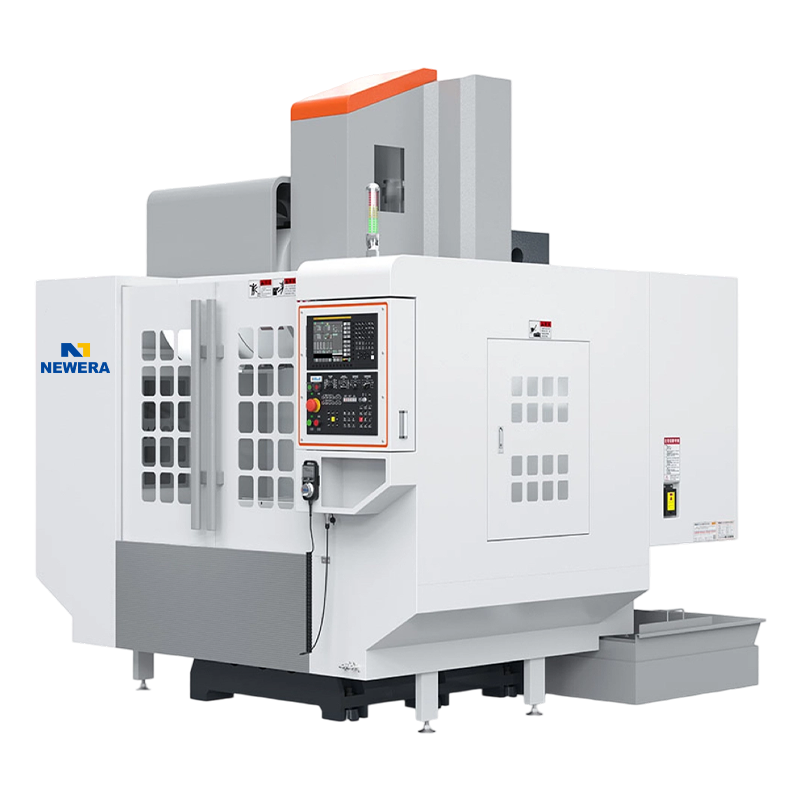

Pursuit of Usability Employs a sophisticated cover design and is designed taking into account the accessibility to the table and workpiece handling with a crane. Other features for better workability are also incorporated throughout the machine. The hydraulic unit and other peripherals requiring periodic maintenance are placed in an easily accessible location to improve maintainability.
Larger spindle output Added S3 15% rated output power and torque; Improve short-time heavy cutting ability; Shorten acceleration, deceleration and rigid tapping time.
New generation spindle motor Intelligent spindle load control; Roughing efficiency increased by 28%.
New HMI more easy Frequently used functions are changed from complex lock settings to one-key operation.
System processing is stronger Simple setting of machining accuracy level.
Smart manufacturing Convenient IoT expansion; Include all mainstream agreements.
Fast and reliable ATC tool magazine
Electric cabinet air conditioner The full range of standard "electric cabinet air conditioner". Prevent dust, oil mist and moisture from entering the interior of the electric cabinet, electronically control the temperature, keep the temperature of the electric cabinet constant, improve the working efficiency of the whole machine and the life of the electronic components. In addition to superior performance, it also protects the life and utilization rate of the machine.

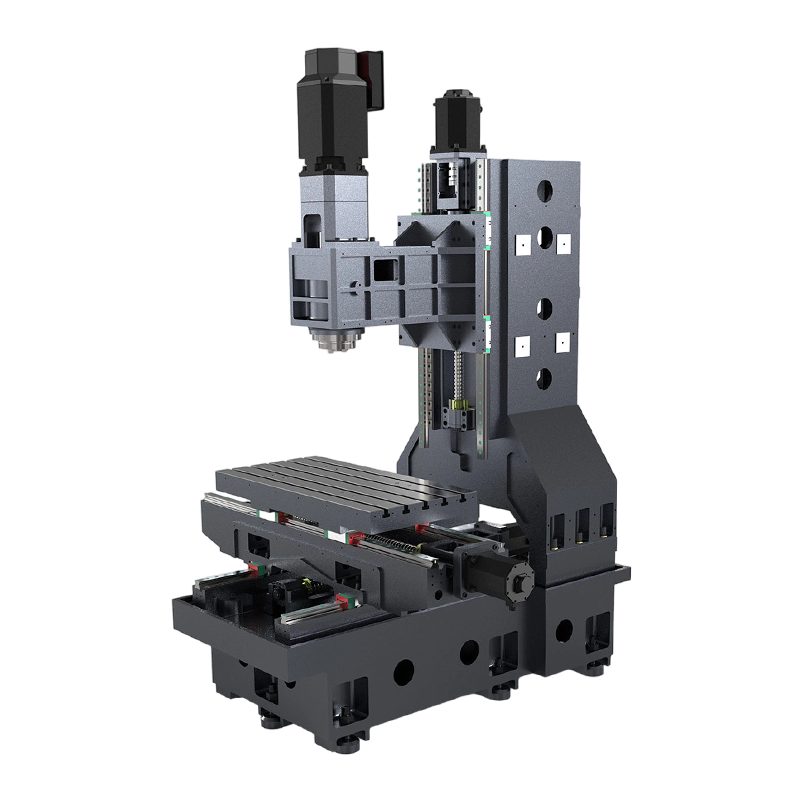

Structure The fuselage and saddle are reinforced with mountain ribs, and the force flow line is the shortest to ensure the best rigidity. Based on excellent engineering design, the ribs of the machining center base and column can resist torsion, shock absorption and transfer cutting vibration to the non-cutting area. The column uses a torque tube design that provides excellent rigidity and resistance to bending and torsion. The ultra-wide base design reduces the center of gravity of the base and adjusts the center of gravity of the machine to the optimum stable height. The bottom of the column is widened to increase the stability of the machine.
Three-axis pre-pull ball screw Imported JIS-C3 grinding grade pre-tensioned nut screw to eliminate backlash, high heat resistance, wear resistance, torsion resistance and long service life, ensuring high precision machining of the machine and adopting imported precision volume The oil filling machine ensures the lubrication of the axial feed mechanism.
Composite precision air compressor Ensure clean air supply and pressure detection of machine components. more reliable control of air pressure valve action. increase water droplet separator to eliminate external source moisture.
Technical Parameters
Model
Unit
EV850
Travel (X/Y/Z)
mm
800/500/500
Work table dimension
mm
1000x500
T-slot
mm
5-18Tx90
Maximum load
kg
400
Distance from spindle nose to table
mm
150-650
Distance from the center of the spindle to the veritical column
mm
550
Spindle
Taper
BT40
Rotating speed
rpm
12000
FANUC Motor power
kW
7.5/11/15
MITSUBISHI Motor power
kW
7.5/11/15
Three-axis
FANUC Motor power (X/Y/Z)
kW
1.8/1.8/3.0
MITSUBISHI Motor power (X/Y/Z)
kW
2.0/2.0/3.0
Rail specification (X/Y/Z)
mm
Roller: 35
Number of sliders (X/Y/Z)
Pc
4/4/4
Screw size
mm
JIS C3: Φ40
G01 Feed rate
mm/min
1-10000
G01 Rapid traverse speed (X/Y/Z)
m/min
48/48/48
Positional accuracy
mm
±0.005/300
Repeated positioning accuracy
mm
±0.003/300
Tool magazine
Manipulator library
pce.
24
Time for changing tool cutter
s
1.3-1.8
Max tool length
mm
300
Max tool diameter (all the tool holes are full of tools)
mm
78
Max tool diameter (the tool holes are empty on the left and right)
Nantong New Era Technology Co., LTD specializes in developing, designing and producing numerical control machine and CNC machine tool for more than 20 years. We have a professional team in technology development, manufacturing and sales services.
As a professional OEM Economical VMC EV850 manufacturers and ODM Economical VMC EV850 company, New Era has continuously obtained the advanced scientific and technological achievements at home and abroad, and has now developed into a professional manufacturer with a complete production and mounting center.We always provide customers with the best solutions and creates the maximum value with high-quality products and perfect services.
